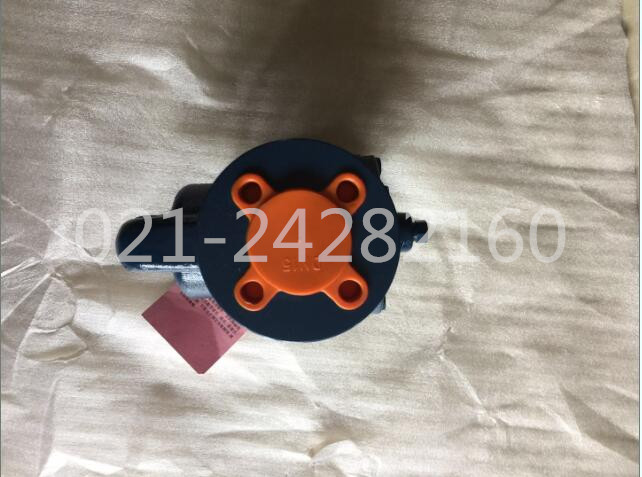

| (ST-B1 / ST-B2 / ST-B3 / ST-B4) CAST IRON INVERTED BUCKET STEAM TRAP |
MATERIAL PARTSMaterialCap and BodyTensile Cast FC22Valve SeatHeat Treated Chrome SteelValveHeat Treated Chrome SteelGasketCompressed Non-AsbestosLeverSUS 304Valve RetainerSUS 304BucketStainless Steel SUS 304Integral StrainerStainless Steel SUS 304Water Hammer ResisterSteel When placing order of Steam Trap, please indicate with:1. Model number.2. Dimension of pipe connection: Screwed end: BSPT or NPT.3. Specify type of flanged in detail: Flanged end: JIS 10K or ANSI 150 LBS.4. Operating pressure setting: 3K / 5 K / 10K / 14K / 18K.(Maximum : 18 kg/cm2) |
SCREWED TYPEModelConnectionLHH1AWeight (kg)M.O.P. kg/cm2B11/2”, 3/4”, 1”128100175963.518B23/4”, 1”1681332281447.218B31”19817329617813.518B41.1/4”, 1.1/2”2321853472032118CONNECTION: BSPT, NPT ARE AVAILABLE. |

|
